123D Design tutorial – The first steps

It’s been fun playing with Autodesk 123D Design lately. In this post, we are longing to get down to the nuts and bolts of really jumping into 123D Design and start creating from the first day.

123D Design tutorial

2D sketch

Ninety percent of the time, you will start your design with a 2D sketch while using 123D design. It is more than important to be knowledgeable in 2D sketch before moving to forward.

Coming from AutoCAD, I had a little trouble finding my way using 123D Design while completing 2D sketches, but things surely went smoothly using the background I had gained on the extended use of AutoCAD.

If you are interested in mastering 2D, I will suggest you take the 21 days of 2D challenge if you have not taken it yet.

Transitioning from 2D sketch to 3D

If you would like to obtain an object like the one below: To get the 3D model on the left, you will be better off creating the 2D sketch on the right and extrude it to obtain the one on the left. (that is not the only way though but it is the more convenient)

123D design tutorial

That’s where 2D sketch come to your rescue.

In the current version of 123D Design, here are the tools that allow you to sketch in 2D.

123D design tutorial

The following tools play the same role, at the only difference that the creating process is different.

123D design tutorial

Let’s say you want to create a rectangle using the RECTANGLE tool on the Primitives tools-bar, you will have to indicate the length and the width of the rectangle and then place it on the drawing window.

123D design tutorial

Using the second alternative, we are given the freedom to choose the starting point and the diagonal ending point of the rectangle, and we can alternatively specify the dimensions of each side (width or height) of the rectangle.

123D design tutorial

The same goes for the circle, the ellipse and the polygon.

let’s now consider the simple 2D figure below.

123D design tutorial

How do we actually get this done in 123D Design.

First thing, make sure you are on a 2D face.

To switch to a 2D face, Click on the upper side of the cubic form on the upper right side.

123D design tutorial

You should see the following after clicking

123D design tutorial

Create 2 circles with the same center using the sketch circle. Both circles should be in the same entity.

123D design tutorial

Select the center of the first circle, and then specify a radius. Start the second circle using the same center as the previous circle immediately. then, Draw a line using POLYLINE.

123D design tutorial

  1. Click on the icon shown above
  2. Click on the created sketch (to edit the sketch)
  3. Select the center of the circles as your first point
  4. Select a second point outside of the two circles to form the first line
  5. Press ESC
  6. Restart from step 1 but at step 4 select a different point from the one already selected but it also has to be outside the circles.

here is the result

123D design tutorial

Now we can use the TRIM command to removed the unwanted part.

123D design tutorial1

  1. Click on TRIM
  2. Click on unwanted part to delete them

123D design tutorial

And you should end up with the following.

123D design tutorial

To get a 3D model from this similar to the one we had at the beginning of this post, you can simply get on an isometric view, select the 2D sketch and Extrude.

To get on an isometric view, you can click on the ORBIT icon.

123D design tutorial

The following will appear at the center of the drawing window.

123D design tutorial

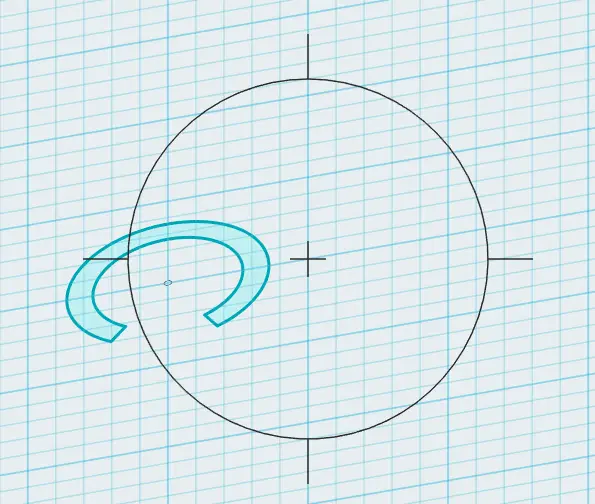

Click in the middle of the circle, hold and drag until you have the wanted view. Press ESC when you are done.

Now Activate the EXTRUDE command

123D design tutorial

Select the 2D sketch and pull the white arrow upward (or downward)

123D design tutorial

And there you have it.

We have extensively created 3D objects here using 123D Design, and in each post, we have made sure the most important instructions were displayed to help you follow the tutorial with no hassle.

Here is the list:

An easy Modeling 3D project
3D Design project for beginners – A Stool
CAD projects for Beginners – 123D Design
Modeling a Vase in 123D design
How to assemble in 123D Design
Beginner’s tips – Autodesk 123D design
Design a mechanical part with Autodesk 123D Design
Modeling with AutoDesk 123D Design

Going through these small projects will assure you get the complete feeling of what modeling with 123D Design is like.

Remember you can always hover the cursor on any icon, and a little description box will pop, in which information will be given about the icon, and you can hit the F1 button on your keyboard to access the help window as well.

123D Design video tutorials

Here are some videos likely to help you take the digestion process to the next level.

You can watch the whole series here.
